The durability and versatility of ball valves make them an ideal solution for a range of industrial and commercial applications. Ball valves have a range of unique benefits. They function well even in challenging environments and can withstand exposure to high temperatures and pressures, as well as contaminated gas or liquid.
Today through our article to help you more comprehensive understanding of the ball valve.
What is a Ball Valve?
Ball valves are a type of shut-off valve characterized by a spherical disc that controls the flow of liquid or gas through a port. This type of valve is particularly popular in applications that feature high temperatures or pressures, as well as applications requiring a very tight shut-off. Ball valves are available with openings in multiple sizes, including standard and full port ball valves, to accommodate different flow rates.
How Does a Ball Valve Work?
This type of valve may be operated either manually or by an actuator. When an external force moves the lever, the valve’s stem moves the ball by a quarter-turn, opening the valve and allowing the gas or liquid to pass through. To stop the flow of gas or liquid, the operator must turn the lever in the opposite direction. This will return the ball to its original position.
Ball Valve Features & Benefits
Durability
Ball valves perform well in harsh environments. They can withstand applications in which they are exposed to high volumes, temperatures, and pressures.
Versatility
As they are available in a range of materials and designs, ball valves offer high levels of versatility. They are ideally suited for an array of industrial applications.
Long Service Life
The durable, high-quality design of ball valves gives them a particularly long service life. They continue to provide strong seals even after long periods of disuse.
Our team of professionals can help you determine if ball valves are the best solution for your application.

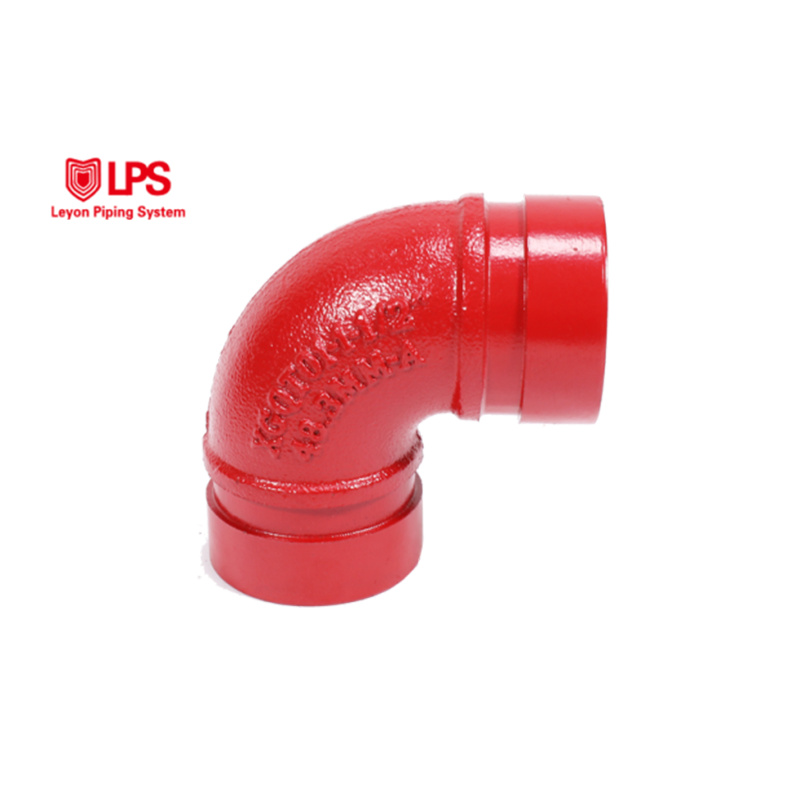

The groove connection fittings that serve as both connections and sealing primarily consist of three parts: a sealing rubber ring, a clamp, and a locking bolt. The rubber sealing ring located on the inner layer is placed on the outside of the connected pipe and fits with the pre-rolled groove, and then a clamp is fastened on the outside of the rubber ring, and then fastened with two bolts. Groove connections have very reliable sealing performance due to the unique sealable structure design of the rubber sealing ring and clamp. With the increase of fluid pressure in the pipe, its sealing performance is correspondingly enhanced.
Features of grooved pipe fittings:
1. The installation speed is fast. The grooved pipe fittings only need to be installed with the standard parts supplied and do not need subsequent work such as welding and galvanizing.
2. Easy to install. The number of bolts to be fastened for grooved pipe fittings is small, the operation is convenient, and only a wrench is required for disassembly and assembly.
3. Environmental protection. The piping and installation of grooved pipe fittings do not require welding or open flame operation. Therefore, there is no pollution, no damage to the galvanized layer inside and outside the pipe, and it will not pollute the construction site and the surrounding environment.
4.It is not limited by the installation site and is easy to maintain. The grooved pipe fittings
can be pre-assembled first and can be adjusted arbitrarily before the bolts are locked. The piping sequence has no direction.
